Details
VAG11.3 latest version,can use the sofware of vag com11.30 / 11.20 / 10.64 / 10.63 /10.62 / 10.60
It works with all VAG vehicles including VW / Audi / Seat and Skoda from 1994 to 2011; this includes new VW / Audi and Seat
VAG COM10.6 diagnostic cable works with Windows 2000, XP, Vista, and windows 7 (both 32-bit and 64-bit)
Beta 11.2 includes the following and improvements:
Communications with all control modules in VW Crafter ("LT3")light trucks.
To access Crafter modules individually, click the new "LT3" tab on the Select Control Module screen:
Support for reading and clearing DTCs (fault codes) in all control modules in VW Crafter light trucks.
The ability to perform Adaptations in all control modules in VW Crafter light trucks.This is particularly useful in order to be able to reset the Service Reminder Indicator. To reset SRI in a Crafter, click the LT3 tab in the Select Control Module Screen, then click [96 - Instruments] and you'll get to a screen like this:

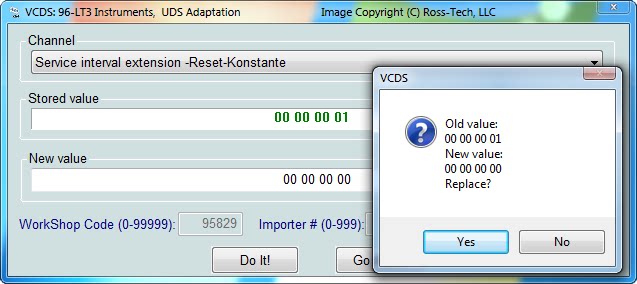

Now click [Adaptation] which will produce the usual UDS Adaptation screen:
On this screen, click the down-arrow in drop-down box labeled "Channel" and then select "Service interval extension - Reset Konstante". The precise name of this channel may vary depending on exact instrument cluster installed in the vehicle, but the correct channel should not be hard to find:
Once you've selected the channel, the Stored value should be four bytes of hexadecimal data. If the Service Reminder is ON, these will usually (but not always) be "00 00 00 01". To reset the Service Reminder, type in a New Value of "00 00 00 00", and click [Do It!]. After that, you'll have to confirm that you really want to do this:
We strongly urge customers not to to alter Adaptation channels unless they understand the contents of a particular channel.
Improved CAN TP2.0 Retry Schemefor more reliable communications.
Fixes for module-mapping hang-ups in some late-model radios.
Support for new VW control module addresses.
New version 1.84 firmware for HEX+CAN interfacesrestores VAG-Saver functionality even when "Boot in intelligent Mode" is active.
Enhanced Subsystem ID info in Auto-Scan.
Updated CODES.DAT filenow with over 16,000 codes.
Release Notes:
Works only with Intelligent Interfaces(HEX, KEY and Micro-CAN).
Default installation location is C:\Ross-Tech\VCDS-Beta\. If allowed to install to its default location, it will not overwrite or interfere with the use of Release 10.6.
For VW Crafter "LT3" control modules, this version supports the following functions:Control Module ID and Advanced ID, Fault Codes (Read and Clear), Supported Codes, Security Access, and Adaptation. Other functions such as Measuring Values, Output Tests, and Basic Settings will be added in future versions. Most Crafter modules require a module-specific "data dictionary" file. If a data dictionary file is not available for a specific control module, VCDS will show an obvious error message.
Beta11.3 adds the these additional improvements:

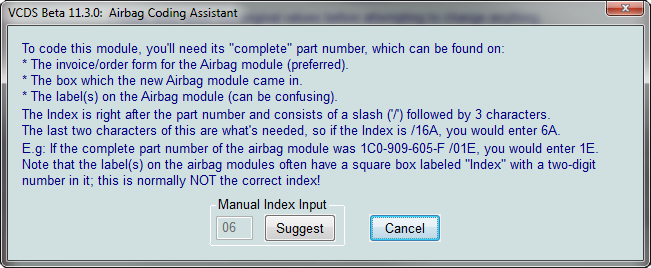

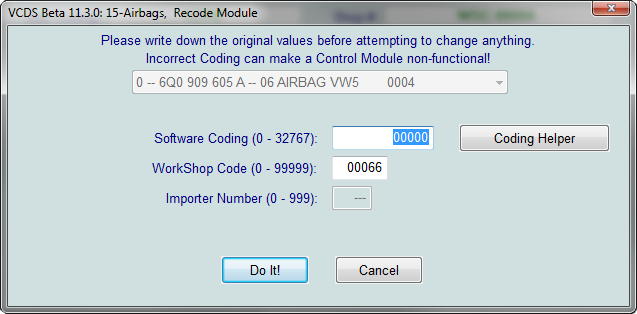

New, more universal Airbag Coding Assistant. Works with the latest airbags which use Index-Based coding and provides tips where to find the Index.
New "Upload Debug/Log File" function in Applications Dialog to make it easier for users to send data needed to answer their support queries.
Increased size of Auto-Scan logs which can be saved. We've had reports of cars with so many faults in various control modules that the old limit was reached which resulted in incomplete logs.
Many other small fixes and enhancements not worth mentioning individually here.
